The SPIKE BED



Built for Ranchers, Ready for the Field

Introducing the Spike Bed, Bedrock’s latest add-on designed for serious hauling and streamlined hay handling. Built for power, precision, and performance, the Spike Bed integrates seamlessly with the Diamond, Granite, and Granite+ series truck beds — delivering professional-grade hydraulic functionality right when you need it.

An add-on option, available exclusively for our Diamond*, Granite, & Granite+ Series Beds.

*2 under-body boxes are included on the Diamond Series.

Powerful Hydraulic Performance

  • KTI 12V D.C. Pump
  • 3200 PSI Max Relief
  • 2.0 GPM | Double Action
  • Manual Relief Valve for Power Loss
  • 15-ft Handheld Pendant Controller
  • Wireless Controller (Optional)
  • Bluetooth, 2-button up/down (Optional)
  • Plug-and-Play Installation



Fittings & Hoses

  • 3/8” JIC Male
  • #6 SAE (Cylinders)
  • #6 SAE (Pump)



Hydraulic Cylinder

  • 3” Bore | 10” Stroke | 3000 PSI
  • 1” Clevis Mounting Bracket

Protection & Reliability

  • 150 Amp Resettable Circuit Breaker
  • Wire Protector Over Set Screw Connection
  • 3-Year Warranty on Pump, Cylinders & Wireless Controller
  • *Hose warranty pending*



Bale Spike

  • 47.25" Overall
  • 42" Usable
  • Max Load: 3,234 lbs
  • 1.625” Diameter
  • 0.5” Attachment Hole

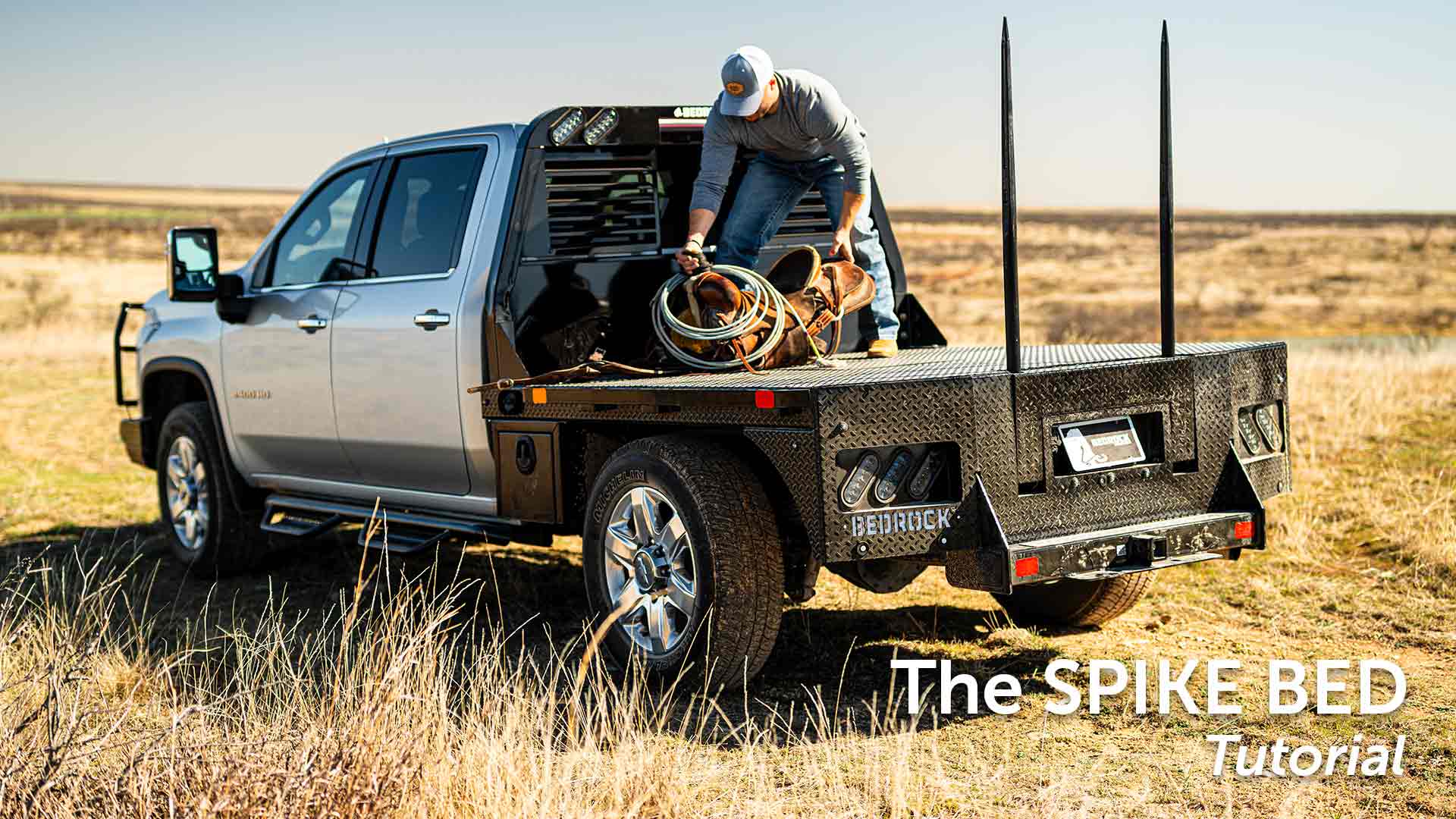

Spike Bed Tutorial

Spike Bed Tutorial

Curious about our Spike Bed? Watch it in action in this quick tutorial video!
